NEW 199X NSPUM 1PN58 soviet night vision scope

Price $1105 (shipping included)

COVID-19 SHIPPING SITUATION AT 26.05.2020: MAIL FROM RUSSIA GOES AS USUAL

Price: $1105
Buy NOW and get a gift from our shop! All items are limited, don't wait.

NEW original russian NSPUM (1PN58) night vision scope. Made in 199X.
Such scopes were used by fighters of the soviet army, KGB, GRU of the USSR from the end of 1970 to 2010 in all wars and local conflicts for a given period (Afghanistan, Chechnya).

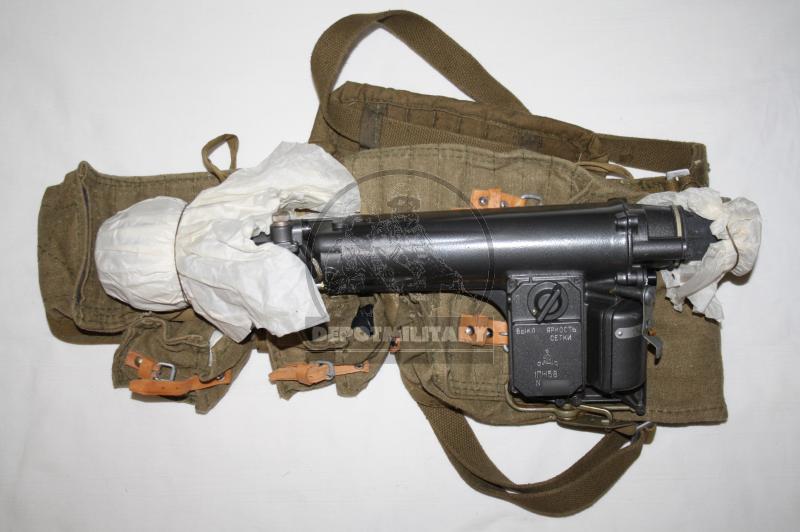

NEW. From warehouse storage. Never been installed on rifle, never used. In factory lubricant and paper.
There is cotton wool inside the eyelet (do not forget to remove it when you use it).

COLLECTION CONDITION!
Checked working condition, clean vision, light reticle net without defects.

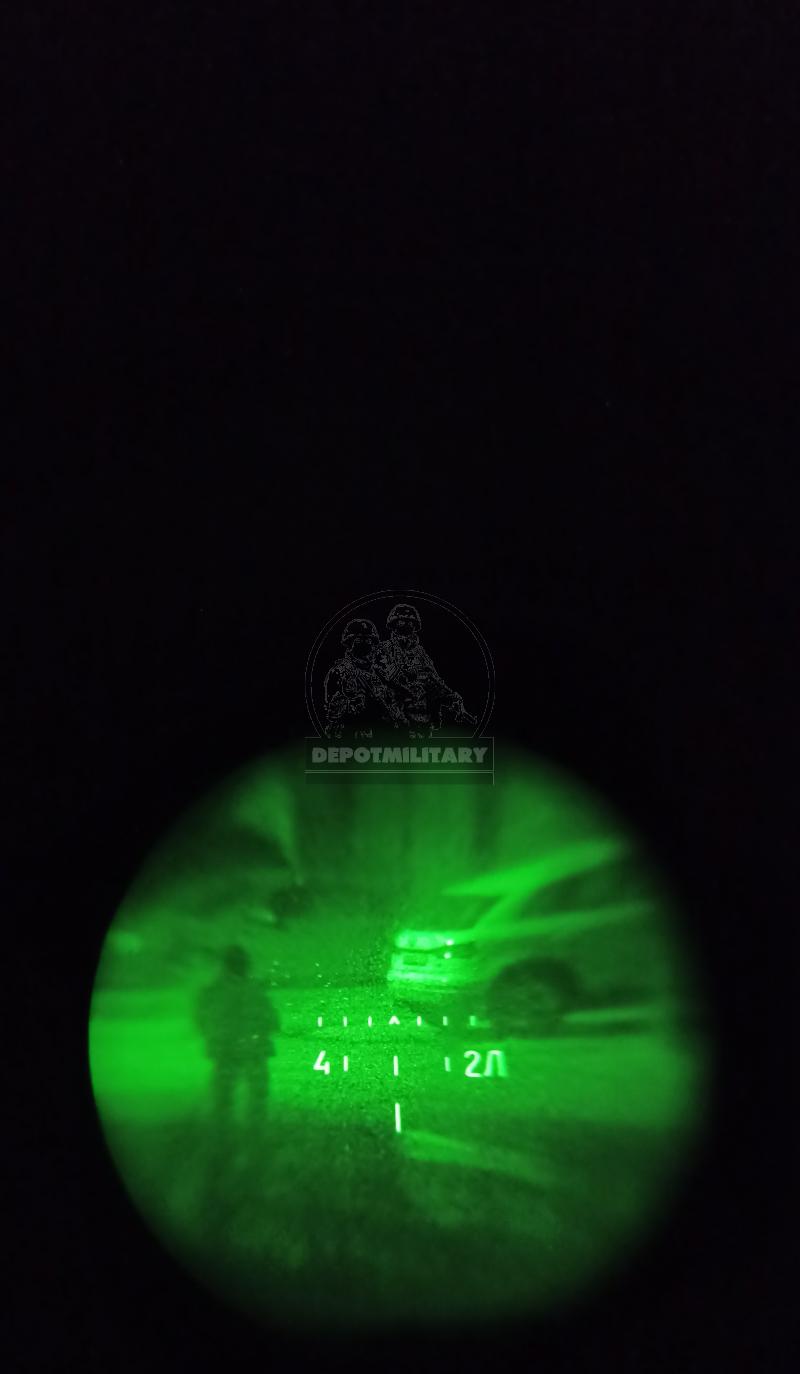

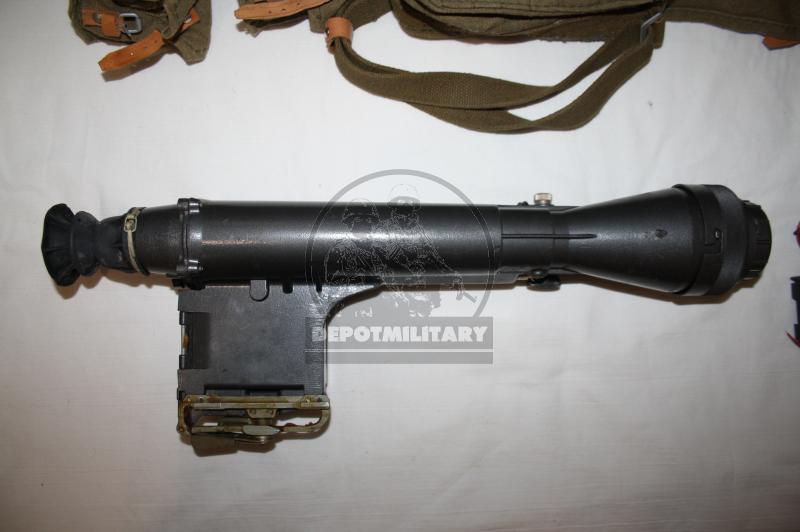

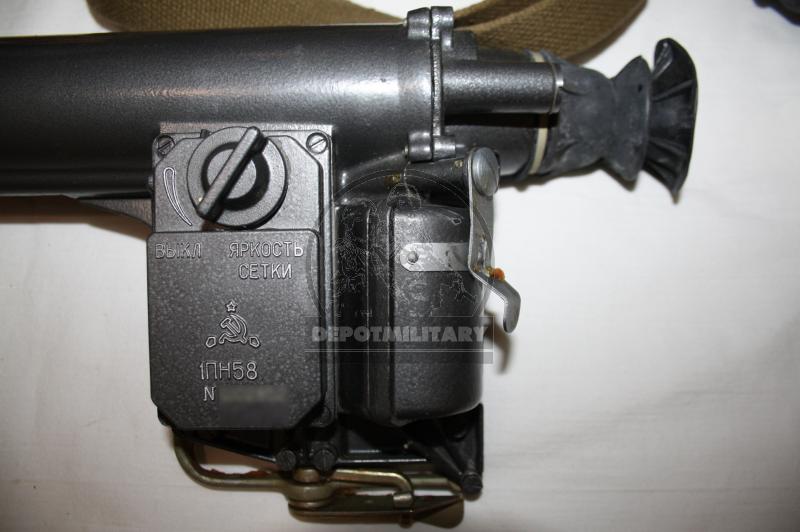

Attached image actuall from this scope.
At byuer will we can send a video of functionality and image / reticle.

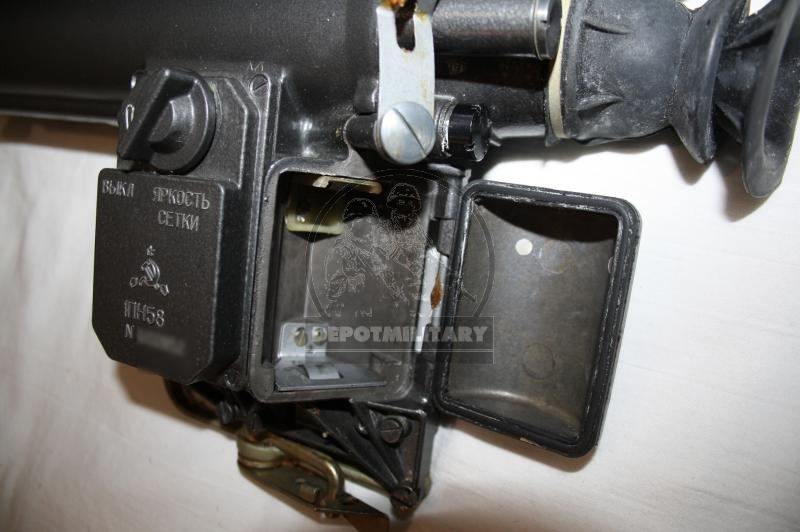

Also, as a gift, we give an adapter for 4 AA batteries for working the scope in a civilian version from regular AA batteries.

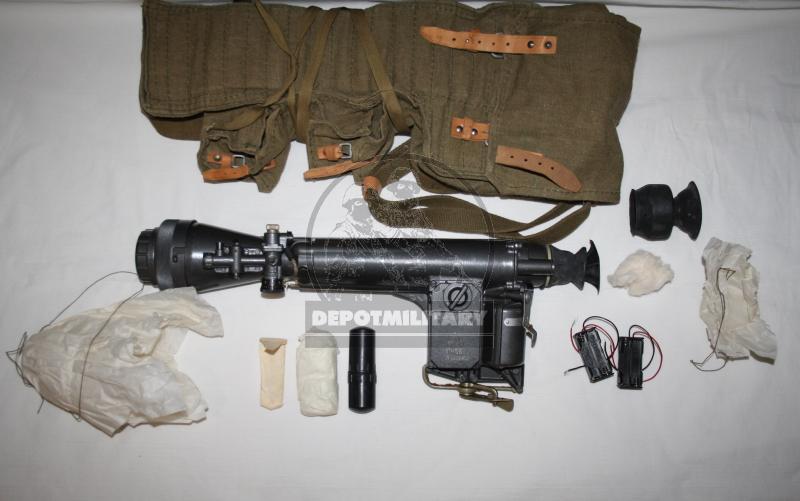

SET:

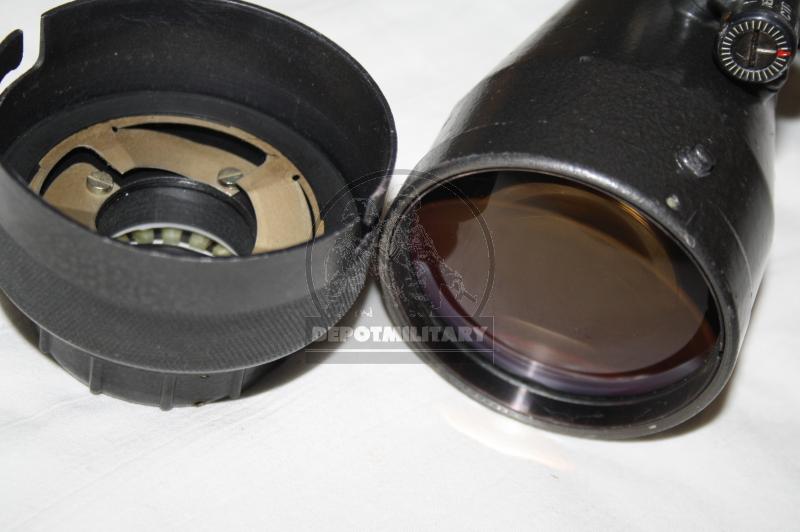

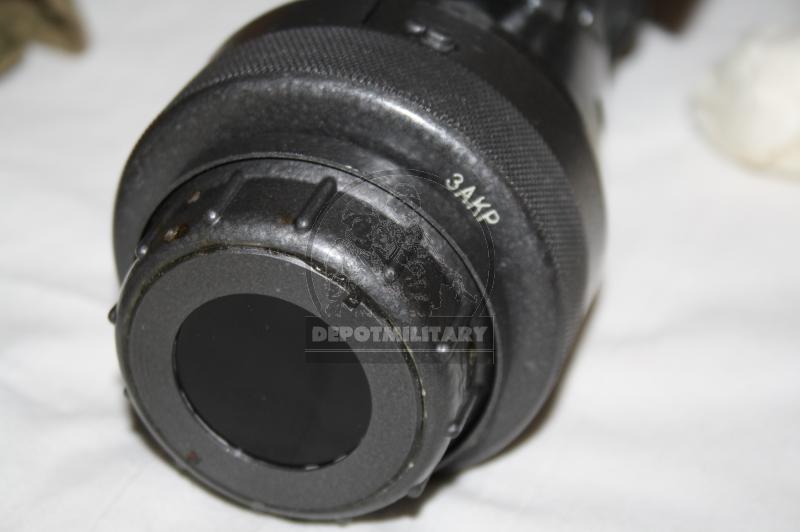

1. Scope NSPUM 1PN58 with a nozzle on the lens ("diaphragm") for the possibility of using a night sight in daylight + Eyecup.
2. Carry bag
3. Eyecup ("Cat's Eye")

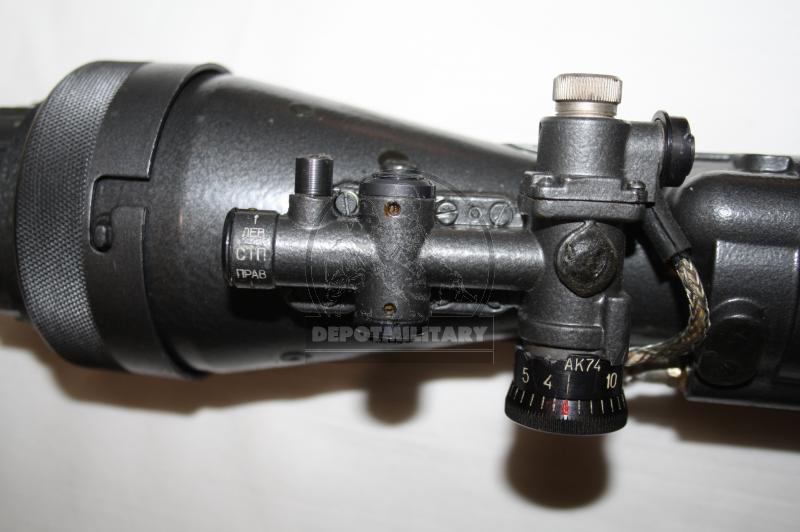

4. A set of aiming scales (limbs) for the following types of weapons (RPK-74, RPK, PK, AKM, SVD, RPG-7, PK and AK74 (mounted on the scope)
5. Key for servicing the scope

Full set from the factory.

We are the only ones who have full permission to export this scopes from Russia.
Excluded locations: Middle East, Ukraine.

Attention, we are not responsible if the use of night vision sights by civilians is prohibited in some countries. Keep this in mind when ordering.

This scope was developed in the mid 80s. And took part in many operations of the USSR and Russia!
Including Afghanistan, the 1-2 Chechen campaign, many events in Russia, and even now in Syria!

NSPUM (1PN58) (Unified Modernized Night Sight), is a Soviet night optical scope, designed to increase the efficiency of shooting in natural night illumination for the following weapons:

  • automatic rifles of the AK family of the H series (AKMN2, AKMSN2, AK74N2, AKS74N2),
  • VSS Vintorez SVD sniper rifles, (SVDN2),
  • light machine guns of the RPK family, (RPKN2, RPKSN2, RPK74N2, RPKS74N2),
  • single machine guns of the PKM family of series H (PKMN2, PKMSN2),
  • RPG-7N2 (RPG-7DN2) manual anti-tank grenade launcher.

The scope was developed on the basis of the NSPU rifle scope as part of an experimental design program/ The characteristics of the scope allow one to confidently recognize a person’s growth figure at night up to 300 meters and a tank board up to 600 meters.

The magnification ratio - ? 3,5
Range of confident recognition under normalized observation conditions:
side projection of the tank, m - 600
human figures in full growth, m - 400
Angular range of observation
in the horizontal plane, degrees - 5
in the vertical plane, hail - 4
Removal of the exit pupil, mm - 50
The diameter of the exit pupil, mm - 5
Aiming line alignment range:
height - +/- 0-08
direction - +/- 0-08
Supply voltage, V - 6.25
Current consumed by the sight in normal climatic conditions, mA - 7
Dimensions of the sight (without diaphragm), mm - 458 ? 186 ? 99
Dimensions of the laying box, mm - 500 ? 215 ? 165
Weight:
in combat position, kg - 2










Price: $1105
Buy NOW and get a gift from our shop! All items are limited, don't wait.
