Reticle for 1PN34 NSPU, 1PN58 NSPUM soviet night vision scope (4/5)
Price $230 (item number: #1108)
Price do not include shipping, shipping costs are calculated separately after placing an order, depending on the location and weight of the items.

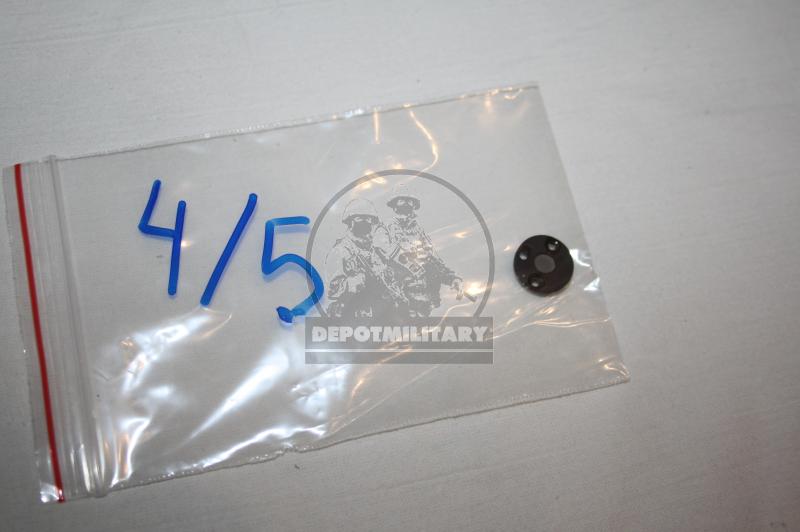

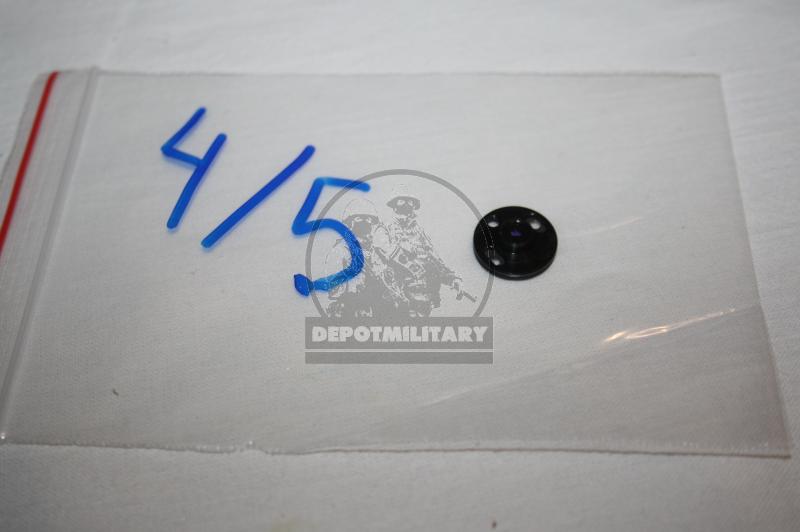

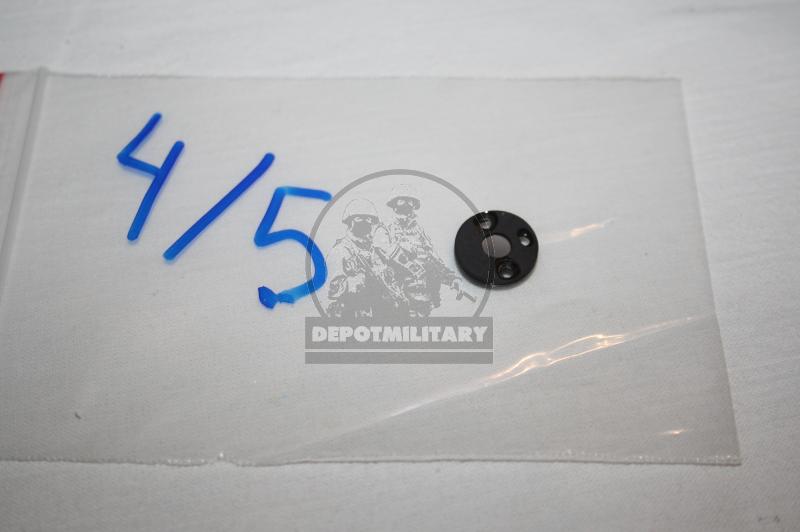

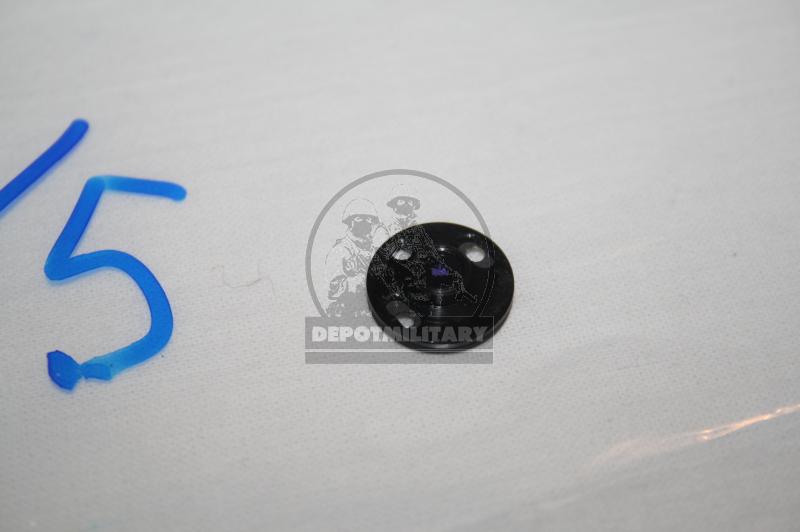

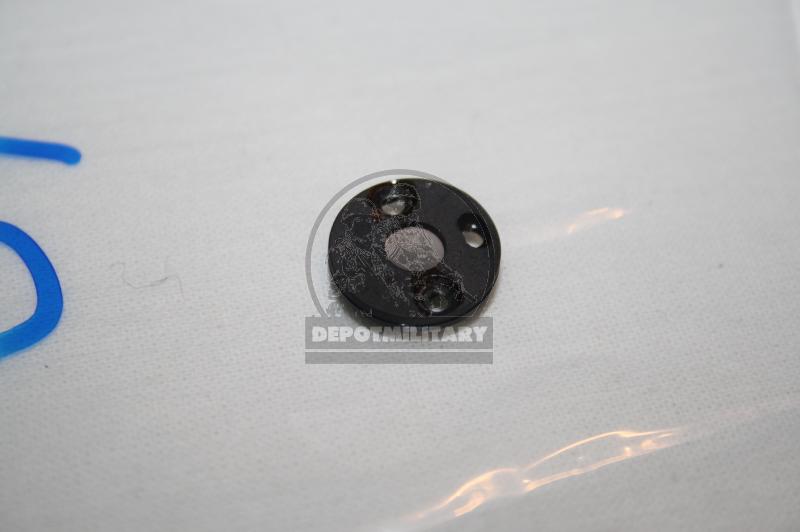

Reticle for soviet russian night scopes 1pn34 (NSPU) and 1pn58 (NSPUM).
Condition is used. Checked working condition.
From time to time the reticle crumbles and you do not see some of the risks when aiming.

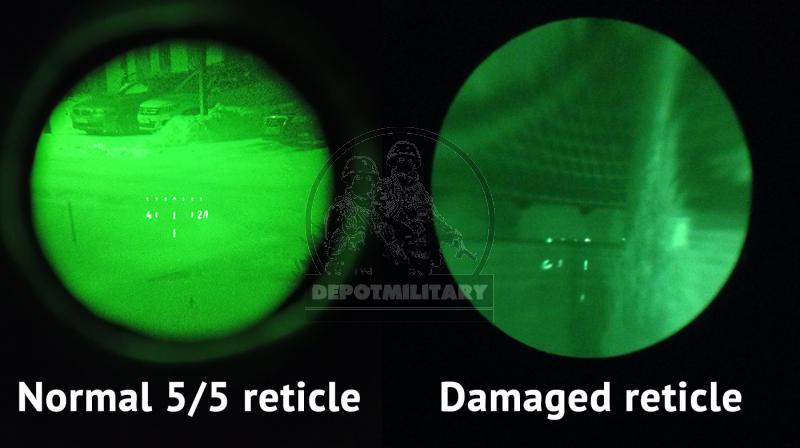

If you do not see all the elements of the reticle, see part of them, or see an additional green glow around the reticle, this means that your reticle is damaged (crumbled from time to time) and needs to be replaced.
Changing the reticle takes 5 minutes, just follow the instructions below.
The 5/5 state means that all reticle elements are visible and the reticle is similar to the new scope.
The 4/5 state means that the aiming stump is preserved and allows aiming, and there are also all the main elements of the reticle and 1-2 risks or markings are missing.
The 3/5 state means that the aiming stump is preserved and allows aiming, but most of the rest of the reticle is damaged.
State 2/5 means that the aiming stump is damaged and the minimum number of reticle elements is preserved.
State 1/5 means that no reticle elements have been preserved and aiming is impossible.

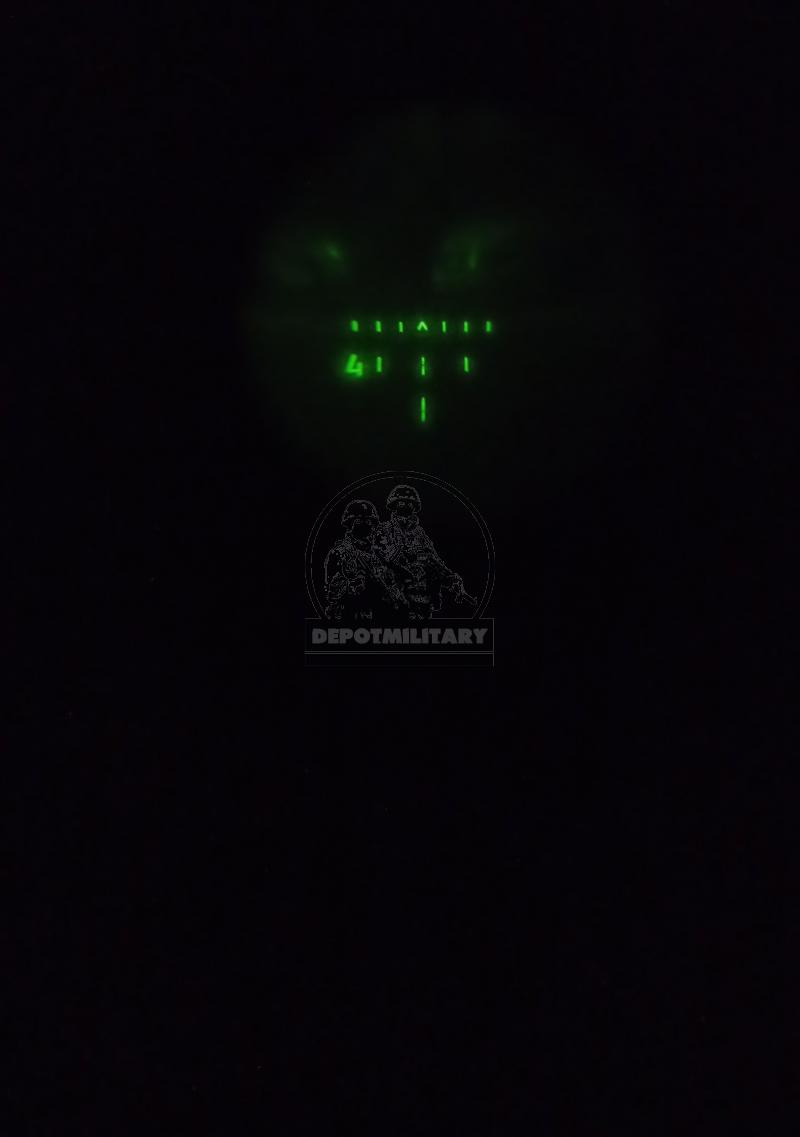

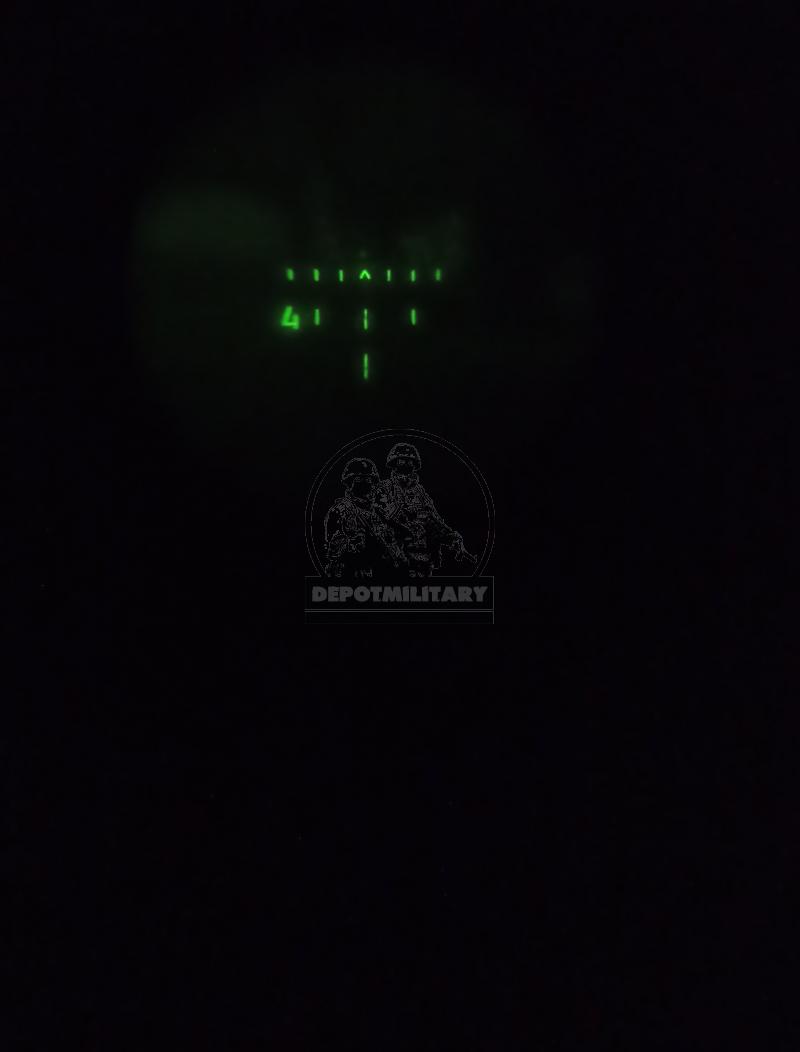

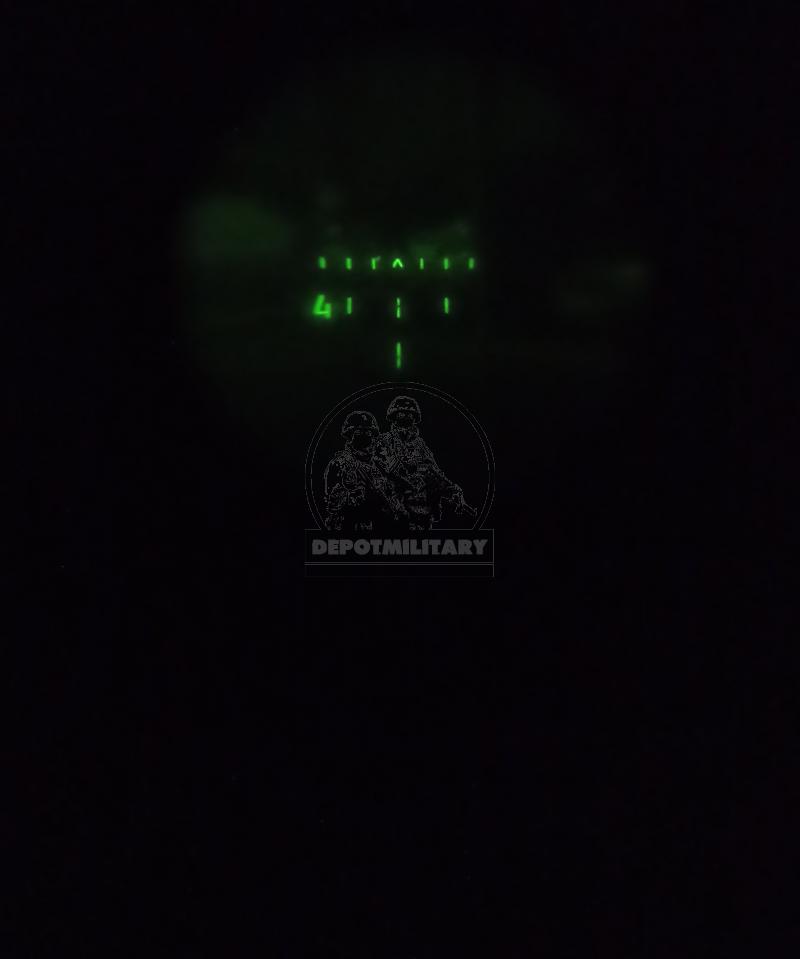

The image in the reticle sample may be different.

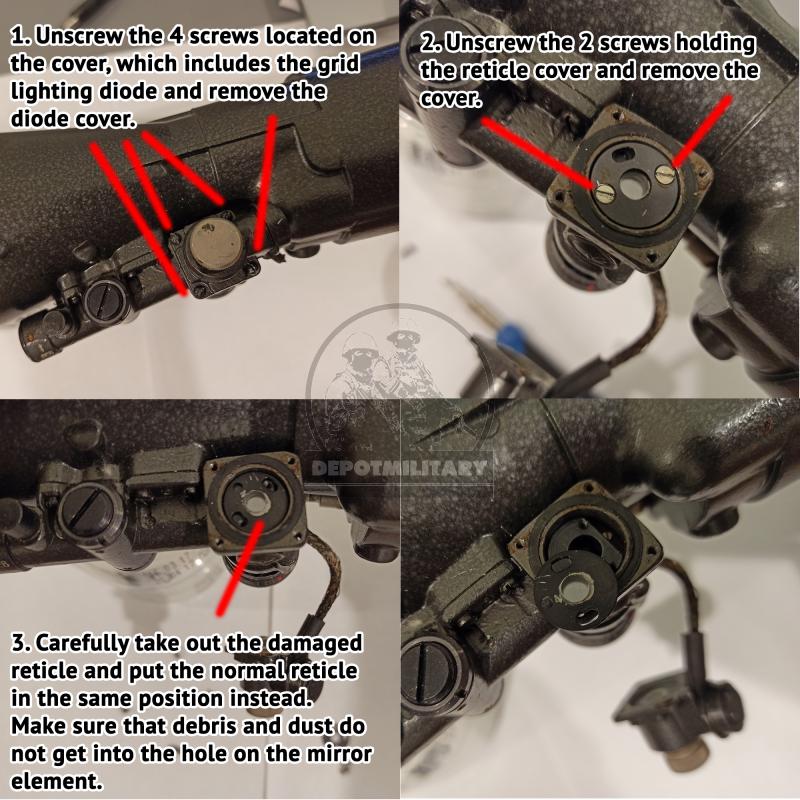

To replace the reticle you need:
1. Unscrew the 4 screws located on the cover, which includes the grid lighting diode and remove the diode cover.
2. Unscrew the 2 screws holding the reticle cover and remove the cover.
3. Carefully take out the damaged reticle and put the normal reticle in the same position instead. Make sure that debris and dust do not get into the hole on the mirror element.
4. Place the reticle cover coaxially on top and tighten the two screws.
5. Place the diode box cover on top and tighten the four bolts.
