NEW 1991 NSPUM 1PN58 soviet night vision scope FULL SET IN BOX

Price $1651 (item number: #923)

Price do not include shipping, shipping costs are calculated separately after placing an order, depending on the location and weight of the items.

Price: $1651
Buy NOW and get a gift from our shop! All items are limited, don't wait.

NEW original russian NSPUM (1PN58) night vision scope. Made in 1986 in USSR. Never used, full working condition.
Such scopes were used by fighters of the soviet army, KGB, GRU of the USSR from the end of 1970 to 2010 in all wars and local conflicts for a given period (Afghanistan, Chechnya).

From warehouse storage. Never been installed on rifle, never used. In factory lubricant and paper. Rubber parts in talcum powder.
Complete passport kit! COLLECTION CONDITION!

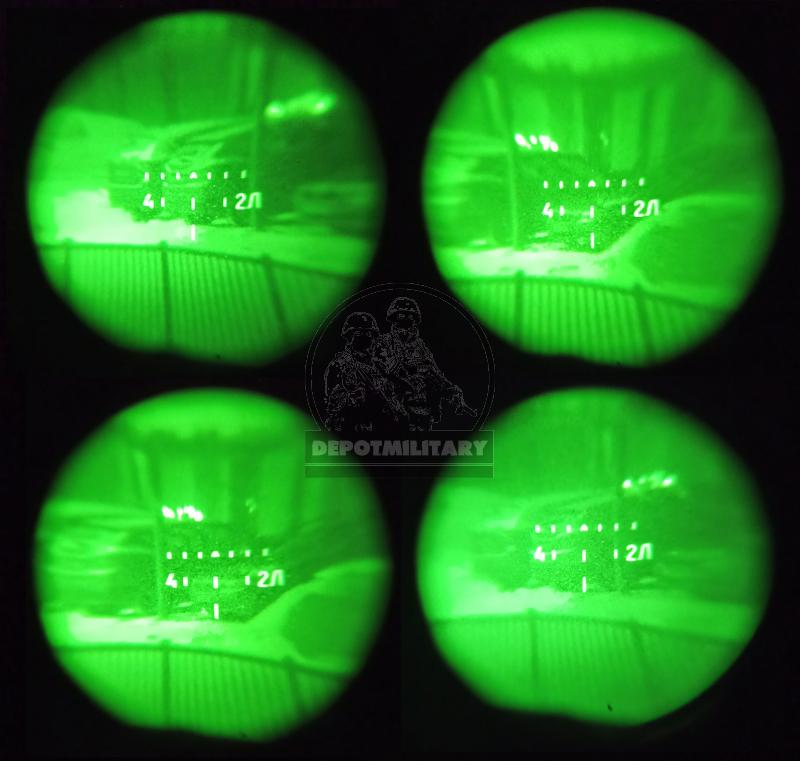

Checked working condition, the scope night image is actually made from this scope. Full reticle without any defects.

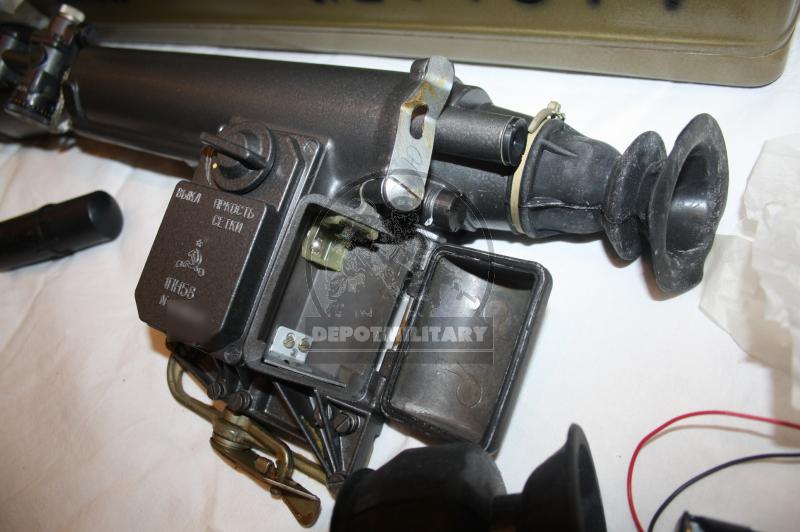

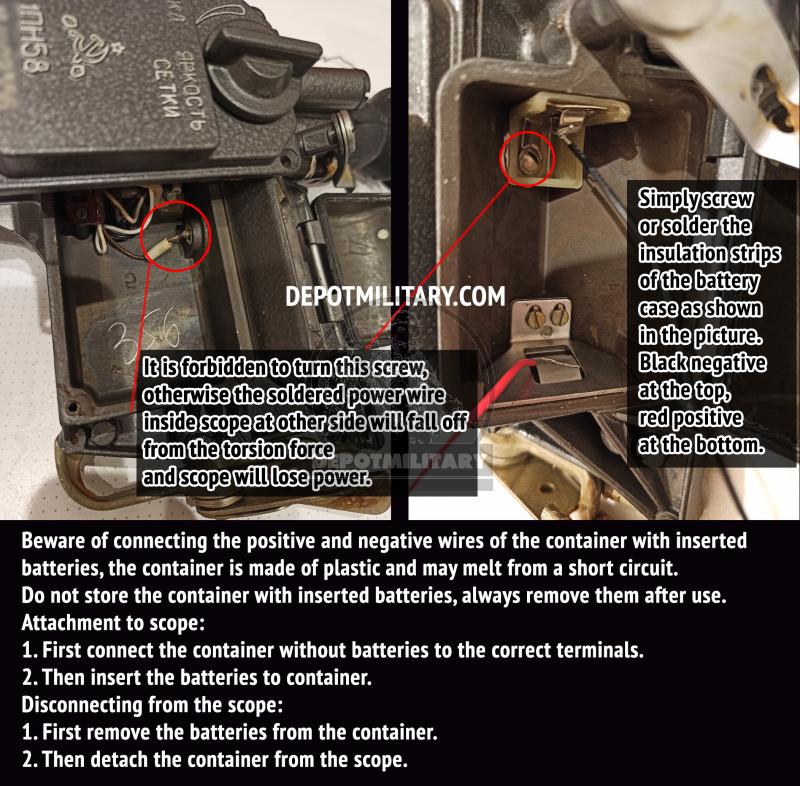

Also, as a gift, we give an adapter for 4 AA batteries for working the scope in a civilian version from regular AA batteries.

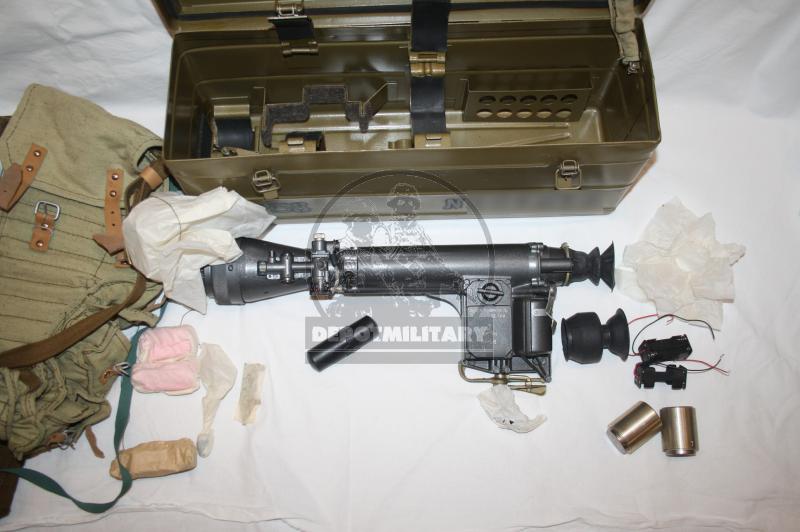

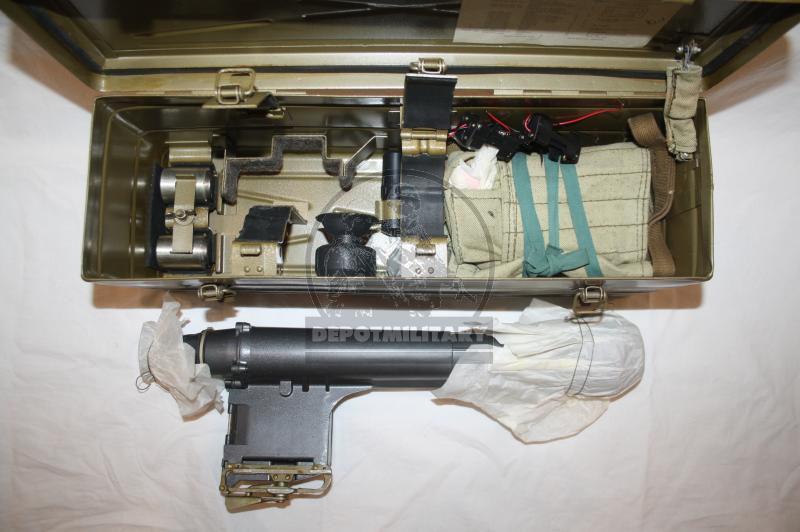

FULL FACTORY SET:

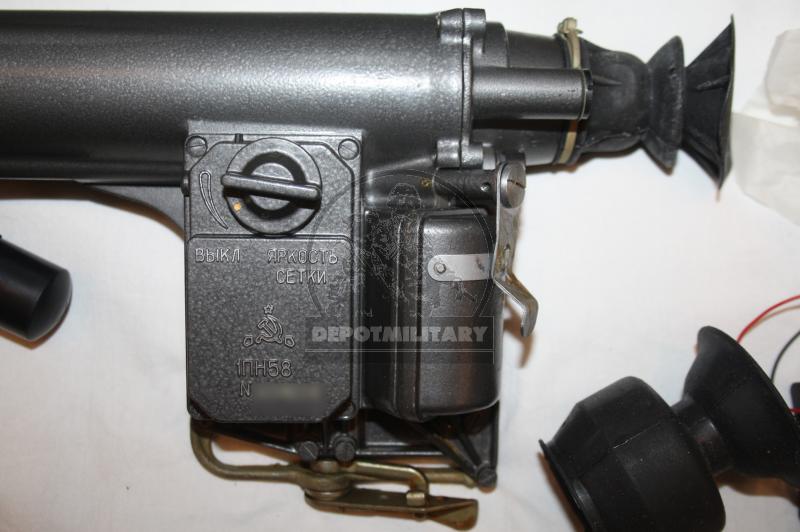

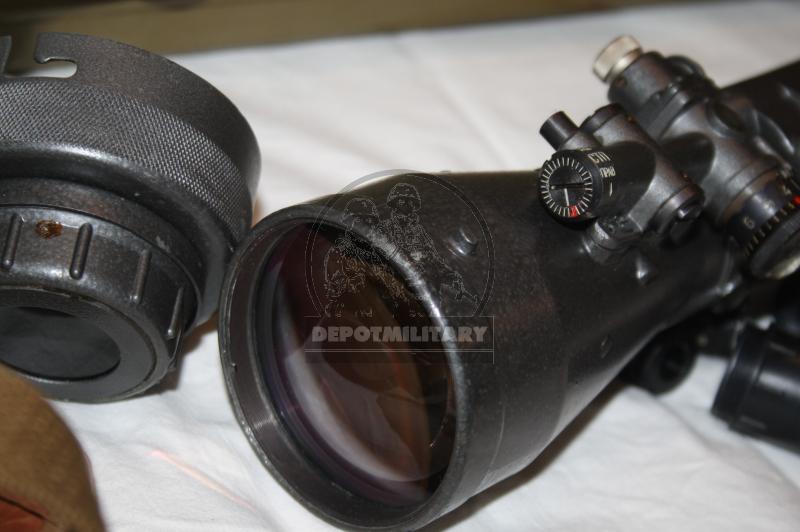

1. Scope NSPUM 1PN58 with a nozzle on the lens ("diaphragm") for the possibility of using a night sight in daylight + Eyecup.

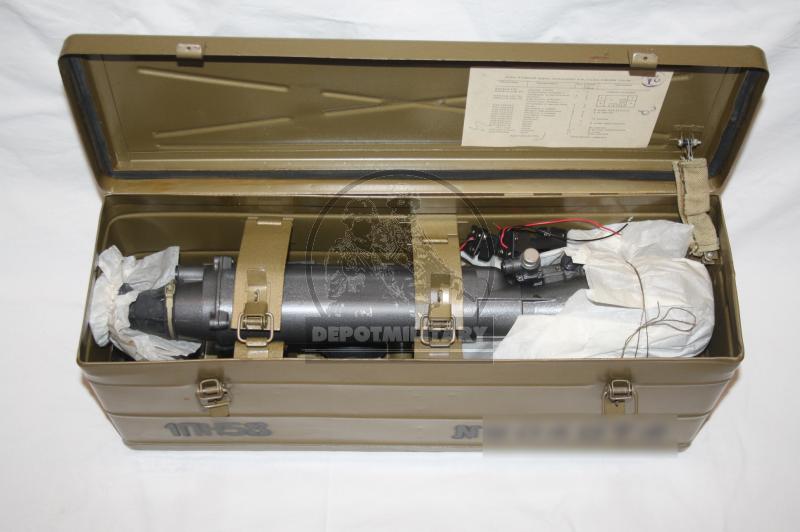

2. Box for transportation (the number of the scope matches the number printed on the box)
3. Field carry canvas bag
4. Belts for the paratrooper parachute suspension system.
5. 2x Napkin
6. Spare reticle lamp in a case
7. Spare cartridge for drying in a glass
8. Eyecup ("Cat's Eye")

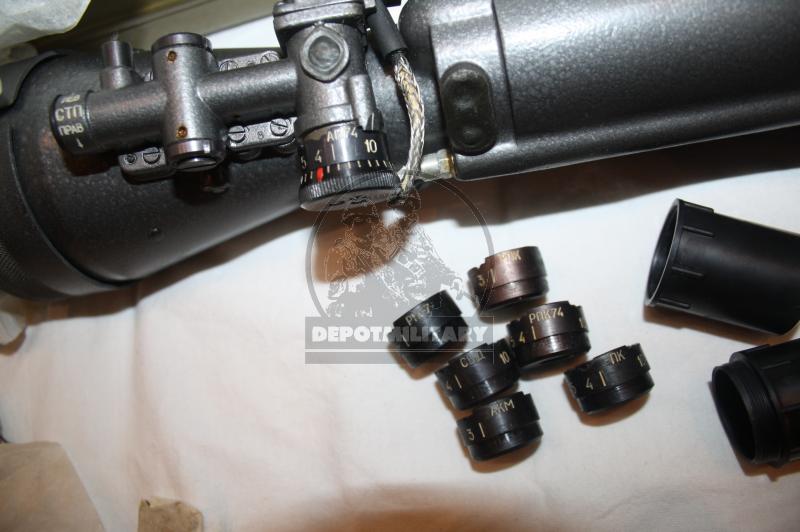

9. A set of 6x additional aiming scales (limbs) for the different types of weapons
10. Key for servicing the scope
11. 2x 4xAA battery adaptor (one for using with scope, one spare)
12. 2x original 1pn58 batteries (cannot be used due to age, but you get a complete set, and you can also solder modern batteries inside)


Full set from the factory.

We are the only ones who have full permission to export this scopes from Russia.
Excluded locations: Middle East, Ukraine.

Attention, we are not responsible if the use of night vision sights by civilians is prohibited in some countries. Keep this in mind when ordering.

This scope was developed in the mid 80s. And took part in many operations of the USSR and Russia!
Including Afghanistan, the 1-2 Chechen campaign, many events in Russia, and even now in Syria!

NSPUM (1PN58) (Unified Modernized Night Sight), is a Soviet night optical scope, designed to increase the efficiency of shooting in natural night illumination for the following weapons:

  • automatic rifles of the AK family of the H series (AKMN2, AKMSN2, AK74N2, AKS74N2),

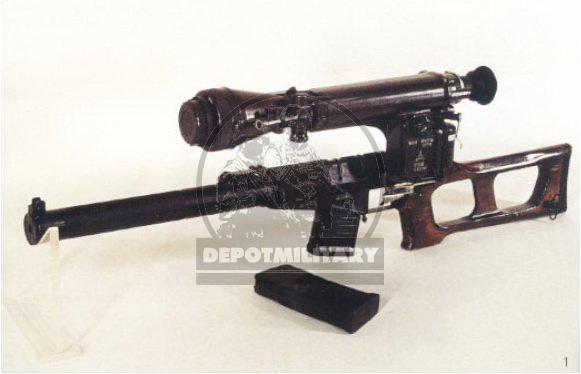

  • VSS Vintorez SVD sniper rifles, (SVDN2),
  • light machine guns of the RPK family, (RPKN2, RPKSN2, RPK74N2, RPKS74N2),
  • single machine guns of the PKM family of series H (PKMN2, PKMSN2),
  • RPG-7N2 (RPG-7DN2) manual anti-tank grenade launcher.

The scope was developed on the basis of the NSPU rifle scope as part of an experimental design program/ The characteristics of the scope allow one to confidently recognize a person’s growth figure at night up to 300 meters and a tank board up to 600 meters.

The magnification ratio - ? 3,5
Range of confident recognition under normalized observation conditions:
side projection of the tank, m - 600
human figures in full growth, m - 400
Angular range of observation
in the horizontal plane, degrees - 5
in the vertical plane, hail - 4
Removal of the exit pupil, mm - 50
The diameter of the exit pupil, mm - 5
Aiming line alignment range:
height - +/- 0-08
direction - +/- 0-08
Supply voltage, V - 6.25
Current consumed by the sight in normal climatic conditions, mA - 7
Dimensions of the sight (without diaphragm), mm - 458 ? 186 ? 99
Dimensions of the laying box, mm - 500 ? 215 ? 165
Weight:
in combat position, kg - 2










Price: $1651
